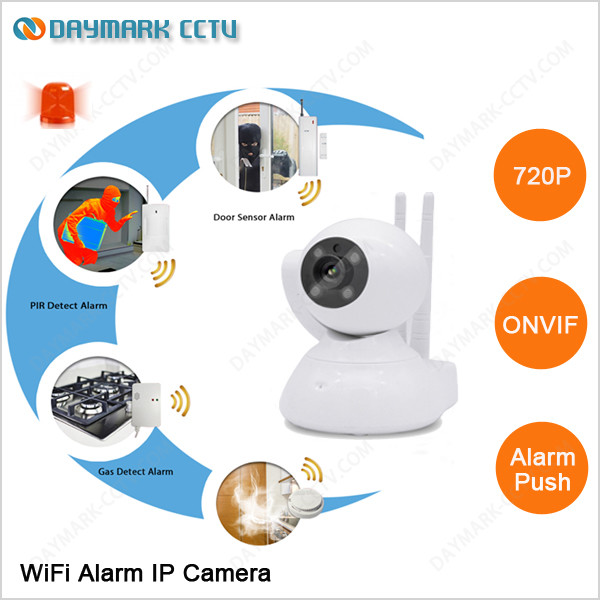

Work with alarm sensors cctv wifi network ip camera for villa security
This network ip camera can work with RF433 sensors (door sensor, smoke detector, PIR sensor, gas leak detector.) Alarm push notification (message+video+sound).
Network ip camera Main Features:
- H.264 Main Profile @level 3
- 720P 1280*720
- H.264 compression format, support Dual stream
- Support ONVIF
- With 10pcs IR LEDs, IR distance 10m
- Support Two-way audio, easy talk with person who are in monotoring area
- Support Pan & Tilt
- Support P2P & Plug and Play
- Support TF card slot, capacity up to 64GB
- Alarm push notification ( message + sound + video)
- Support RF433 sensors and linkage alarm
Network ip camera Specification:
| Model | DM-IP-23HDA |
| Video |
| Image Sensor | 1/4" 1.0MP CMOS sensor |
| Resolution | 720p 1280*720 / 640*480 / 320*240 |
| Compression Format | H.264 |
| S/N Ratio | >50dB |
| Bit Rate | 32-4096kbps |
| IR LED | 10pcs IR LEDs, IR range 10m |
| IR CUT | yes |
| Pan&Tilt | Pan: 355° Tilt: 120° |
| Motion Dection | yes |
| BLC | yes |
| AGC | auto |
| White Balance | auto |
| IR Sensitivity | yes |
| Minimum Illumination | 0Lux (IR on) |
| TF Card Slot | yes, up to 64GB |
| Lens |
| Lens | 3.6mm lens |
| Audio/Alarm |
| Audio Compression | G.711 |
| Audio | built-in microphone |
| Two-way Audio | yes |
| Alarm | RF433M HZ door, PIR, smoke, gas leak sensors, motion detection |
| Linkage Alarm | support up to 64pcs sensors |
| one key to arm/disarm by smartphone |
| Alarm Processing | send email, recording, SD card storage etc |
| Alarm Notification | alarm message + alarm sound in camera&mobile + alarm video |
| Network |
| Network Interface | WiFI/802.11/b/g/n |
| RJ45 Port | yes |
| Wireless Security | WPA2, WPA, WEP |
| Network Protocol | TCP, UDP, IP, HTTP, SMTP, DHCP, DNS, DDNS, ARP, ICMP, POP3, NTP, RTP, RTCP |
| P2P Function | yes |
| Mobile Surveillance | support Android, Iphone |
| Management | CMS, and support ONVIF |
| General Parameters |
| Operation Temperature | (-10°C~ 50°C ) |
| Operation Humidity | 0% - 90%RH |
| Power Supply | DC5V 2A included |
| POE Module | no |
| Housing | plastic |
Network ip camera can be used as monitoring camera and alarm system:
How does Network ip camera work?
This Network ip camera support 8pcs defence areas:
This Network ip camera support linkage alarm:
What does this Network ip camera can help you?
This Network ip camera support alarm push notification to mobile phone:
View this Network ip camera on mobile:
